U Profile Purline Sheet Metal Cold Roll Forming Machine 0.7 - 2.5 mm Thickness

U Profile Purline Sheet Metal Cold Roll Forming Machine 0.7 - 2.5 mm Thickness

Technical Parameters

Material Spec                       Galvanized steel sheet at stress 350Mpa (50ksi);
Thickness:                            0.7~2.5mm
Main motor power                15 KW
Hydraulic station power        5.5KW
Cutting Tolerance                 ≤±1.0mm (length≤ 3000mm)
                                             ≤±2.0mm ( 3000mm < length ≤ 5000mm)
                                             ≤±3.0mm ( 5000mm < length ≤ 10000mm)
                                             ≤±5.0mm ( 10000mm < length)
Roll Forming Speed            10m / min
Main Roller                           round 16 stands
Main body dimension           round 8000*1000*1400mm
Control system                     PLC

Quick Details

• Condition: New
• Type: Steel frame & purlin machine
• Tile Type: Steel
• Use: Step support, Frame Profile
• Production Capacity: 10 m / min
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Wuxi Shenghong
• Power(W): 15 KW
• Voltage: 380v, 3phase, 50Hz or at buyer`s requirement
• Dimension(L*W*H): Length: 8000 * Width1000 * Height:1400mm
• Weight: around 8000 kgs
• Certification: CE, ISO9001:2008
• Warranty: 1year
• Punching type: optional
• Roller stands: aound 16 stands
• Passive uncoiler: 3T
• Controller: PLC
• Roller driven type: Chain transmission
• Thickness: 1.5-3.0mm
• Main motor power: 15kw
• Hydraulic station power: 5.5kw

Components

This line includes 3 tons un-power uncoiler, sheet guiding equipment, leveling system, roll forming system, cutting equipment, hydraulic station and electric controlling system

Material of Main Equipment

Roller Material                High grade mold steel Cr12 with quenched treatment,which can improve the integrated mechanic feature of the rollers
Active Shaft Material      High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft
Electric Elements           PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements from famous suppliers in China
Cutter blade                  Cr12 mould steel with quenched treatment

Component and Function

Coil Feeding Equipment        Consists of one uncoiler with capacity of 3000kgs and its base. The mandrel can expand or shrink. With separate button to make the mandrel roll.

Guiding Equipment               Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.

 Roll forming system             The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers with quenched treatment after being machined by the exact machining tool.

 Hydraulic Station                  Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

PLC Control Panel                 Main parts imported from Mitsubishi. The operation is easy and steady and can be choose operation by manual or automatically.

Working Flow

Decoiling the sheet     Sheet guiding   leveling the sheet     Roll forming       Cutting the panel


Introduction of C Z U Shaped Purlin Roll Forming Machine

1. C Z U Shaped Steel Purlin Roll Forming Machinebiggest and most competitive machinery manufacturer in China, C Z  U Purlin Machine are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factories,warehouses, garages, exhibition centers, cinemas, theatres and gardens. The products of U, C, Z shape purlin forming machine have excellent anti-bending property and are easy to install.
2.The machine is full-automatically controlled by PLC, the whole hydraulic transmission, drive hydraulic oil jar carry out and shear through center pump station towards the hole, hydraulic pressure Motortransmit power as main transmission. it' s reliable to operate steadily by hydraulic pressure, shear towards hole precision geometry form rule of the notch. Its hydraulic pressure transmission,to set correct and fit.
3.U purline Forming Machine can produce many types of U-shaped purline.The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, punching equipment , pre-cutting equipment,C-shape forming system, hydraulic station, and PLC controlling system

Packaging & Delivery


sheet metal forming machine

metal sheet forming machine

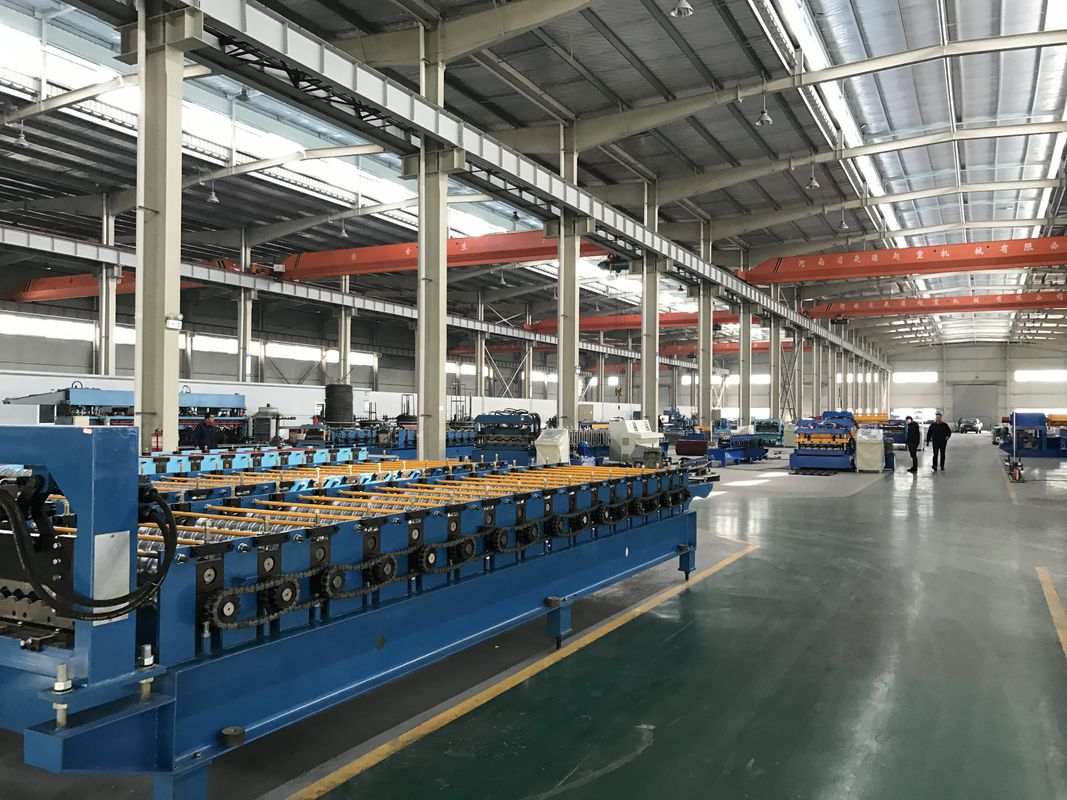

U Profile Purline Sheet Metal Cold Roll Forming Machine 0.7 - 2.5 mm Thickness Images
