50HZ 3 Phase Roofing Sheet Roll Forming Machine / Metal Forming Machinery

Name: 50HZ 3 Phase Roofing Sheet Roll Forming Machine Metal Forming Machinery
Brand: Shenghong
Price: 1 USD

Buy cheap 50HZ 3 Phase Roofing Sheet Roll Forming Machine / Metal Forming Machinery product

Brand Name : Shenghong

Model Number : SWL151222-109

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1 sets

Price : Negotiation

Payment Terms : T/T

Supply Ability : 25 SETS/ MONTH

Delivery Time : 40 days after payment

Packaging Details : 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.

Roller fixer : Middle plate welded

Frame : 350 H steel welded

Type : Auto working mode

After-sale service : Lifetime technical Support

Frame thickness : 16mm

Drive mode : Chain

Contact Now

50HZ 3 Phase Roofing Sheet Roll Forming Machine / Metal Forming Machinery

Basic parameters of the double layer roofing machine

No.	Main parameter
1	Length of the main part	About 8500 х 1650 х 1500 mm
2	Weight of main part	About 7.5 t
3	Voltage	380 V/50 HZ 3 Phase (as customer’s request)
4	Roller fixer	Middle plate welded
5	Frame	350 H steel welded
6	Frame thickness	16 mm
7	Drive mode	Chain
8	Material of rollers	45# steel, surface hard chromium plating.
9	Material of shafts	45# steel
10	Diameter of shafts	Φ 90 mm
11	Number of rollers	Up layer: 13 rollers Down layer: 15 rollers
14	Main power	7.5 kw

Features of double layer roofing machine:

1.One machine could produce two types roofing sheets.
2.Save working space, save energy and save cost of machine.
3.Easy to use and easy to transportation.
4.If you need to add wheels to machine, you can put production aany place.
5.Two layer one PLC control system, one pair of motors, easy to maintain.
6.Working speed 25 meter per minute.
7.Material thickness could be from 0.2 to 1.2mm.
Note: But two layers cannot work at the same time. If you need to huge production, please buy single layer machine.

Introduction of Machine

Double layer Roofing Sheet Cold Roll Forming Machine is a combo machine for making many different types roofing panels. For example when you need to make two types roofing sheets, you have to buy two types machines. But one double layer machines, by one machine you can produce those two types. For example the first layer could be glazed tile roll forming machine and the second layer could be IBR or round wave roofing sheet.

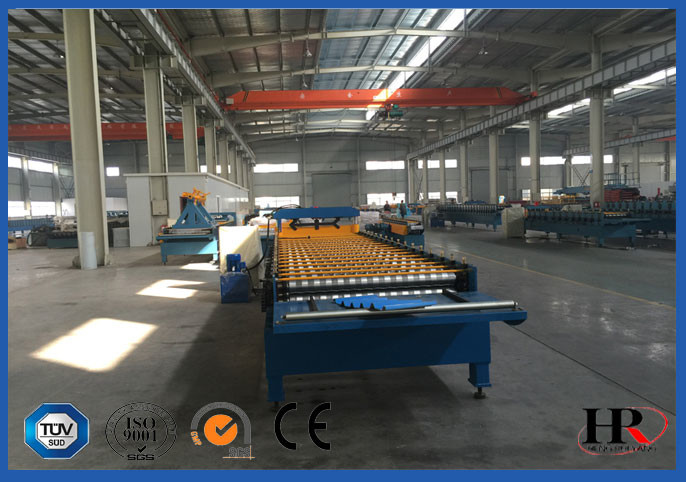

Machinery Photos

50HZ 3 Phase Roofing Sheet Roll Forming Machine / Metal Forming Machinery
