Auto Purlin Roll Forming Machine

Name: Auto Purlin Roll Forming Machine
Brand: Shenghong
Price: 1 USD

Buy cheap Auto Purlin Roll Forming Machine product

Brand Name : Shenghong

Model Number : SWL003

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 60 sets/Year

Delivery Time : 45Days

Packaging Details : container

Automatic Grade : Automatic

Control System : PLC Control System

Customized : Customized

Feature : Automation

PLC Control System : Easy to Maintenance

Warranty : 12 Months

Contact Now

Auto Zuc Purlin Roll Forming Machine With 12 Months Of Warranty

Product Details

Model NO.:	SWL003
Type:	Rolling Machine
Forging Forming Method:	Free Forging
Power Source:	Hydraulic Pressure
Feature:	Automation
Certification:	SGS, ISO9001, CE
Warranty:	12 Months
Advantage:	Easy to Maintenance

Product Description

Main characteristics:
- old formed and galvanised steel sheet in coils: elongation shall be minimum of 16 %; yield strength

240 - 420 N/mm2 ; thickness of metal  0,72,0 mm.;  width of a strip  up to  300 mm.
- Production speed: 0-20m/mim.
- Power  source AC380V, 50Hz, 3P
- Total power about 17,5kW   .
Each component description:
- Passive decoiler: capacity-2t., inner expansion 520-620 mm, with brake
- Guide roller device
- straightener  device -  9 rollers
-The roll

Product Information

NO.	Name		unit	parameter	remark
1	Suitable raw materials	Type		Mild steel, galvanized sheet
		Plate strength	Map	≥350
		Plate thickness	mm	1~3
2	specification		mm	See the pictures
3	speed		m/min	6~8
4	Material of the roller			GCr15,Hardening treatment
5	drive type			Cast steel frame, Chin drive
6	power		kw	About 30
7	Electrical control system			PCL frequency control
8	Size(lengthXwidthXheight)		m	25X4X3.9

FAQ

1. Are you manufacturer?
Yes, we are manufacturer with 15 years experience

2. What information you need before quote me?
We need profile drawin gof the panel you want to produce, material information and your special requirements

3. What payment terms you accept?
T/T
4. Can you make machine according to my design or photo type ?
Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.

5. What is the warranty for our machine?
We have one year guarantee, and provide whole life's technical support

6. Is there any spare part send for free?
Yes, pls contact us we can talk it

7.Is the machine automatic?
Yes, it can be manual and automatic

8.Is engineer available to service overseas market ?

Yes , we can send technician to your company for installation and adjustment , Training your workers to operate the machine . Buyer should charge for visa,round ticket ,food and accommodation overseas and $60/person/day for salary .

9.How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.

3.Good aftersales-service, its free of charge during the warranty period.

If you have any questions, do not hesitate to contact us. You will be answered in 12 hours.

Product Tags:

z purlin machine

z purlin roll forming machine

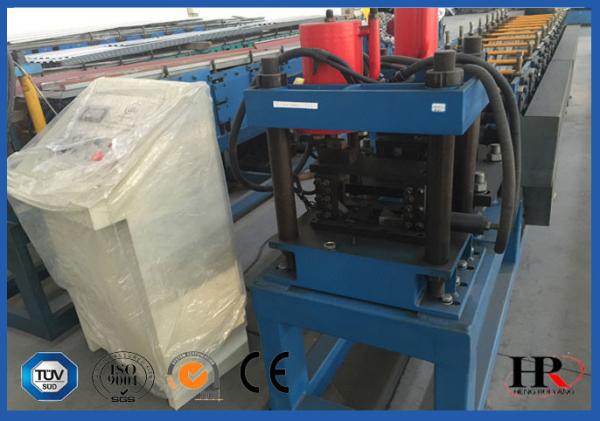

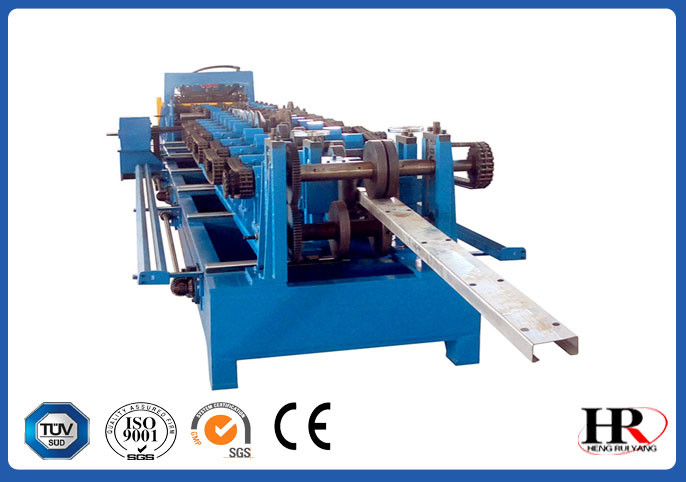

Auto Purlin Roll Forming Machine Images
