Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai

Name: Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai
Brand: Shenghong
Price: 1 USD

Buy cheap Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai product

Brand Name : Shenghong

Model Number : SBO15004

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10 sets/month

Delivery Time : 45Days

Packaging Details : container

Automatic Grade : Semi-Automatic

Drive : Electric

Power Source : Hydraulic Pressure

Material : 40Cr

Control System : PLC Control System

HS Code : 8455212000

Contact Now

Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai

Product Details

Model NO.:SBO15004

Control System:PLC Control System
Export Markets:Global

Packing:Wooden Cases
Origin:Jaingsu China

HS Code:8455212000
Production Capacity:50 Set/Sets / Year

Product Description

Rittal System Electrical Cabinet Frame Roll Forming Machine

1 parts of equipment

The whole line includes leveling,feeding/punching, forming ,cutting and so on

The whole line consists of de-coiler system, punching system, forming system,cutting system,electrical

control system ,etc

Additional Info.

Packing:Container Packing of The Line Sutiable for Oversea

Origin:Jiangsu

Production Capacity:10 Set/Sets / Month

Product Description

Forming craft
De-coiler----Leveler/feeder----Continuous punching---Roll forming(welding)---Cutting-to-length---Collection
Equipment structure
This production line consist of de-coiler,leveler/feeder,Continuous punching,Roll forming,Cutting-to-length,Collection and electric control system,etc.
1, Bottom Continuous punching
Punching type:Four-column punching device
Punching mould material:Cr12
1, Roll Forming Machine
Forming stations:26 stations
Wall-frame structure or gantry type
Max feeding width:220mm
Roller axis diameter:¢60mm,,Material 40Cr
Roller material :GCr15,quenching treatment,Hardness HRC56-62º
Motor power:22kw
Wall-frame structure or gantry type
Max feeding width:220mm
Roller axis diameter:¢60mm,,Material 40Cr
Roller material :GCr15,quenching treatment,Hardness HRC56-62º
Motor power:22kw
Fly-cutting device without bur

PRODUCT DESCRIPTION

No.	Name		unit	parameter	remark
1	Suitable raw materials	type		Mild steel, galvanized sheet
		Plate strength	Map	≥350
		Plate thickness	mm	1.2~2.5
2	specification		mm	See the picture
3	speed		m/min	6~8
4	Material of the roller			GCr15,Hardening treatment
5	drive type			Gear box
6	power		kw	About45
7	Electrical control system			PCL frequency control
8	Size(lengthX widthXheight)		m	35X4X3.9

Additional Info.

Packing:Container Packing of The Line Sutiable for Oversea

Origin:Jiangsu

Production Capacity:10 Set/Sets / Month

Product Description

Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai

Modular and exible:
Bayed enclosure systems support exible, innite baying
High protection category and international approvals
UL-tested busbar systems
Optimum climate control even at high heat losses
Perfect integration into a standard container if required

Product Tags:

door frame making machine

frame making equipment

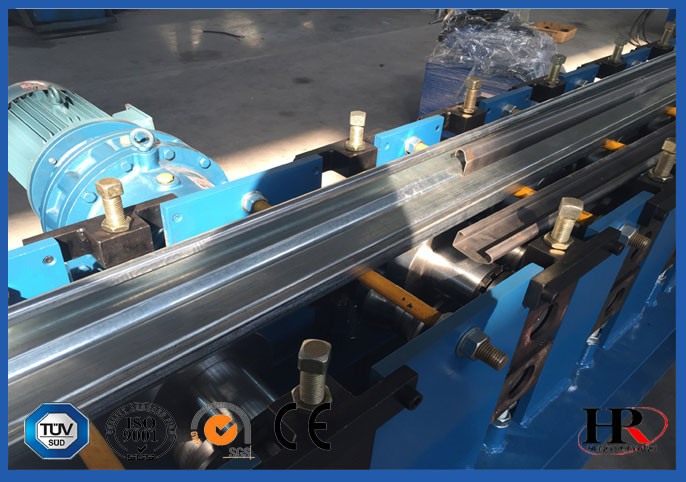

Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai Images
