Double Layer Roll Forming Machine

Name: Double Layer Roll Forming Machine
Brand: Shenghong
Price: 1 USD

Buy cheap Double Layer Roll Forming Machine product

Brand Name : Shenghong

Model Number : Roof Tile SWL151218-54

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 25 SETS/ MONTH

Delivery Time : 40 days after payment

Packaging Details : 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.

Type : Double layer roof panel roll forming machine

Cutting Tolerance : +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm

Feeding width : 1200mm

Cover width : 780mm

Material : galvanized or pre-painted steel sheet

Electric Elements : PLC control panel, transducer imported from Mitsubishi of Japan

Contact Now

Custom Galvanized Double Layer Roll Forming Machine Anti Corrosion

Specifications

1. High quality double layer roll forming machine

2. double layer forming machine

3. dual level profiling machine

4. One Machine can make two kinds of models / profiles

5. Thickness: 0.3-0.7mm
6. Strength: Q235-345Mpa
7. Material: galvanized or pre-painted steel sheet
8. Speed: 1-15m/min

Double layer roof panel roll forming machine

It can produce two different shapes within one machine, profile depends on customer.

Main parameter

Material spec:

Color steel sheet;

Thickness:

0.3 mm to 0.7 mm

Coil width:

depends

Working speed:

0-3m/min. (Nodal distance at 250mm)

Cutting tolerance:

±2mm

Main motor power:

4Kw

Hydraulic station power:

3Kw

Decoiler

manual decoiler, max capacity 5000kgs

Main roller qty:

about 16 stands but depends on last design

Type of cutting:

Roll-formed and length-set cutting

Main body dimension:

About 7800mm*1500mm*1500mm

Production Line Componments

5tons passive uncoiler

1set

Pre-cutting equipment(Optional)

1set

Film covering device (Optional)

1set

Guiding Equipment

1set

Roll Forming Equipment

1set

Post Cut Equipment

1set

Hydraulic Station

1set

PLC Control Penal

1set

Supporter Table

2sets

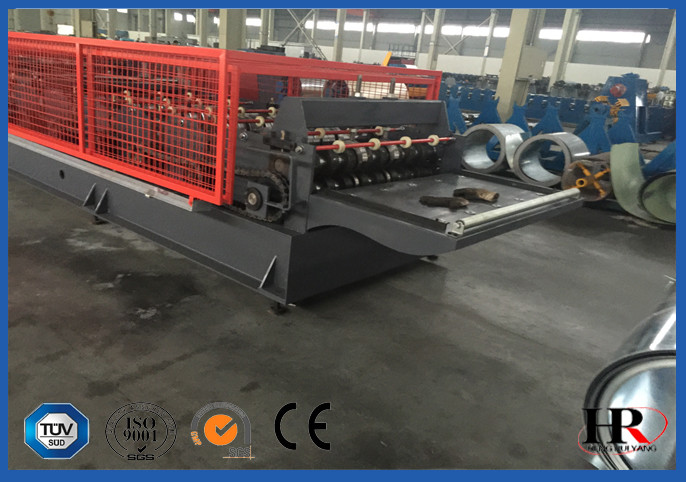

Machine Shows

Product Tags:
metal sheet forming machine

sheet metal rolling machine


Double Layer Roll Forming Machine Images
